Reinforcement and lost formwork in concrete slabs

Building slabs are constructed in various ways. The special properties of steel-reinforced concrete slabs make them superior to other types of slab. As a result, steel is the most common reinforcement used for concrete slabs.

In addition to adaptable design possibilities, reinforced concrete slab has high load-bearing capacities and can be produced in long spans. It also has a high level of sound proofing and fire protection.

read more
BIL_KIT_BIL_PRESSE_Speisesaal mit Fassadenstreben_16z9_FHD_21RL.jpg

As reinforced concrete slabs are expensive to manufacture, product solutions are needed to streamline the production process. These include reinforcement elements to prevent punching shear, strong connections in expansion joints or prefinished formwork for slab edges.

Reinforcement of point-supported slabs

Among steel-reinforced concrete slabs, the flat slab without inner joists or column head reinforcements has gained acceptance due to its simple formwork and reinforcement layout.

Around the point supports, however, there is a risk of punching shear in the slab. With appropriate reinforcement elements, shear forces can be absorbed and punching shear can be prevented.

Expansion joint constructions

A zero-stress transfer of shear forces occurring in expansion joints is associated with a great deal of time and effort, especially when systems such as corbels or slide bearings are used. Shear force dowels represent a far less complex solution.

Prefinished formwork

Formwork is used to give concrete components their shape on construction sites and in precast factories. In many cases, the formwork is removed after the concrete has hardened. There are also applications where it makes sense to use concrete formwork. This remains permanently in the structure and gives it a particularly attractive appearance with an exceptionally good surface quality. The use of this formwork combines optimization of the construction process with economic advantages.

Schöck’s efficient solutions

As punching shear reinforcement, Schöck Bole® increases the load-bearing capacity of point-supported slabs and thus eliminates the risk of punching shear. The ready-to-install reinforcement element consists of double-headed bolts held in the correct position by spacer bars. With technical approval, Schöck Bole® is the reliable and effective solution.

more about Bole®

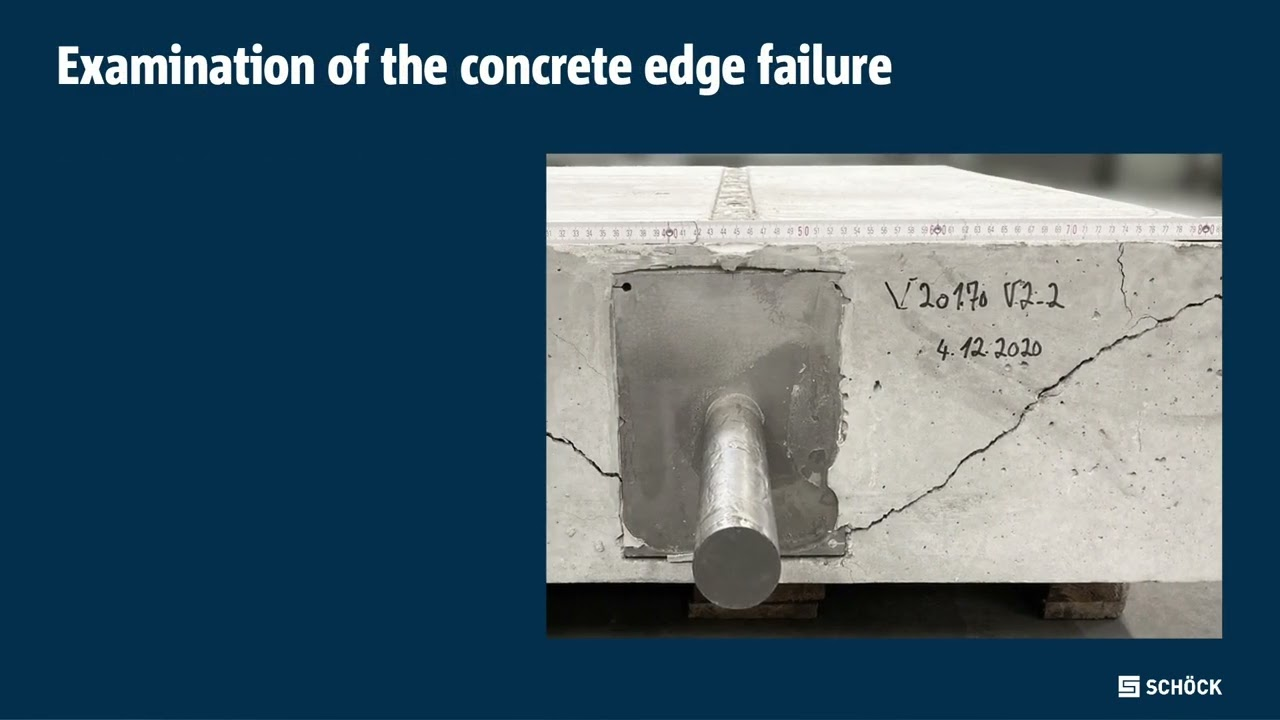

The shear force dowels Schöck Dorn are ready for installation and free of maintenance. This makes them the uncomplicated and efficient solution for the transmission of shear forces in expansion joints.

more about Dorn



Product finder: Always the appropriate solution

Our extensive product range offers well-engineered products, components and systems to meet the highest requirements for thermal insulation, impact sound insulation and reinforcement technology. Here you will always find the right Schöck solution for your application.

to the product finder
